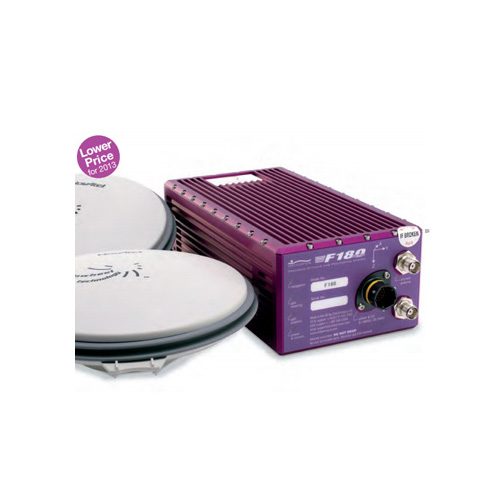

Coda Octopus MRU F180 Inertial Navigation and Attitude Measurement System

Description

Coda Octopus MRU F180 Inertial Navigation and Attitude Measurement System

Accurate, reliable MOTION and positioning data in a compact package

The F180® series of GNSS aided inertial attitude and positioning systems are high quality, compact packages for the hydrographic survey market.

Refined to meet the exacting requirements of the multibeam survey market, the F180® series systems are easy to install, easy to use and produce highly accurate positioning, heading and MOTION data in the most dynamic offshore conditions.

The light, yet robust equipment has proved to be a reliable and cost effective solution on marine survey vessels of all sizes.

iHeaveTM (Intelligent Heave) processing is included as standard to accurately measure swell amplitudes of up to 70 seconds period.

A GLONASS upgrade is available to allow your F180® series system to utilise additional satellites, especially useful in areas where the sky view is partially obscured.

Additionally, for extremely rapid vessel deployments, we produce a PreCalibrated housing accessory to significantly reduce the installation and calibration phases of operation.

Benefits

• Precision position, roll, pitch, heading and heave in a single compact unit
• Maximum accuracy under all conditions
• Continuous output during GNSS dropouts
• Adherence to International Hydrographic
• Organization (IHO) survey standards
• Reduced installation time
• Easy to use
• Highly competitive price
• Expert 24×7 Technical Support

Features

• Survey grade GNSS, gyro, attitude and heave sensor in one box
• High accuracy position, heading, heave, pitch and roll at up to 100Hz
• Tightly integrated GNSS and inertial components result in increased accuracy and reduced settling times when compared to outputs from separate sensors
• Continuous output during GNSS dropouts
• Compatible with HYPACK®, QINSy and other navigation packages
• Standard formats and interfaces
• iHeaveTM (intelligent heave processing) available as standard for improved heave accuracy
• Intuitive MOTION Control software included as standard
• Optional upgrade to GLONASS or Pre-calibrated housing
• Optional INSightTM software allows for generation of post processed solution

Applications

• Hydrographic survey
• Bridge, dam, harbour inspection
• Dredging
• Offshore renewable energy
• Environmental survey
• Shipping channel survey
